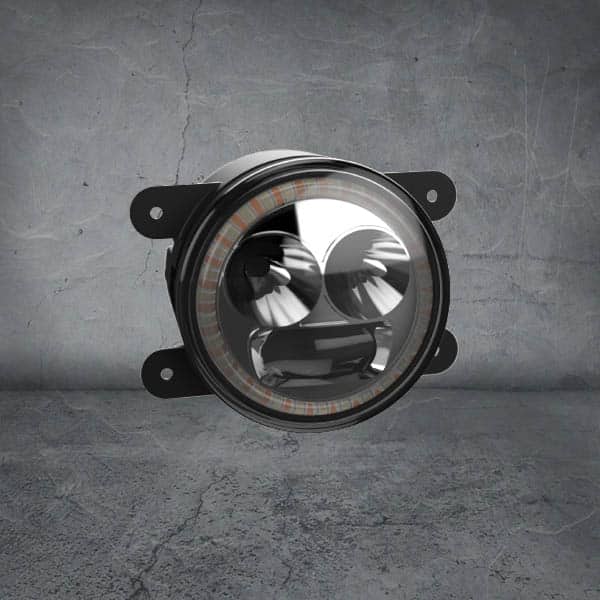

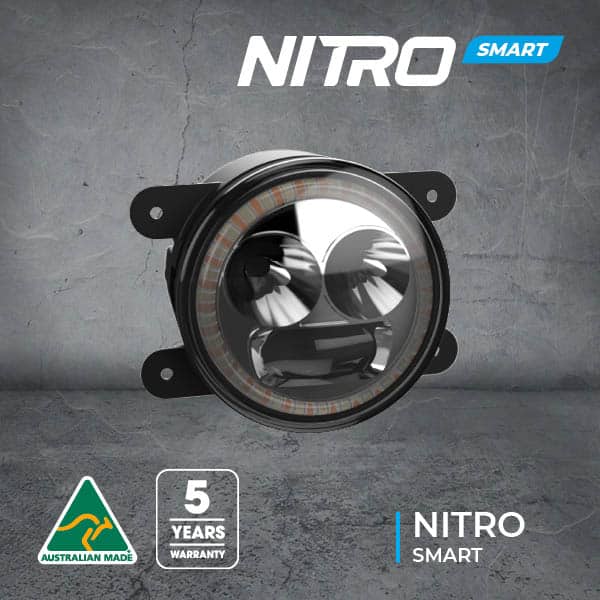

Smart Driving Light

The Nitro Smart has been designed to integrate with bullbars and bumpers to provide significantly more light output without compromising compliance or the OE look of your vehicle.The module delivers 1 lux at 500m from the driving light function, in addition to the other functions of fog, DRL and indicator.Having external adjustment means the units can be tweaked to ensure you get optimum performance with any load.

Wiring harness

An optional generic wiring harness is available.  Please note this is generic and not vehicle specific.  Although it makes installation simpler we recommend that all Nitro products are installed by a qualified electrician.

---

Beam Patterns

---

4000k vs 5700k Colour Temperature

Nitro Smart Hi Beam/ Low Beam comparison

---

Wiring Diagram

Product Specification

Light Source	LED
Voltage	9V-32V
Current Draw	4.4A @ 13.5V
Operating Temperature	-40°C to +80°C
Waterproof rating	IP67
Connector Type	8 PIN JST
Housing	Aluminium
Lens Construction	Polycarbonate
Carrier	GFN
Colour Temperature	5700K
Lifespan	50'000 Hours

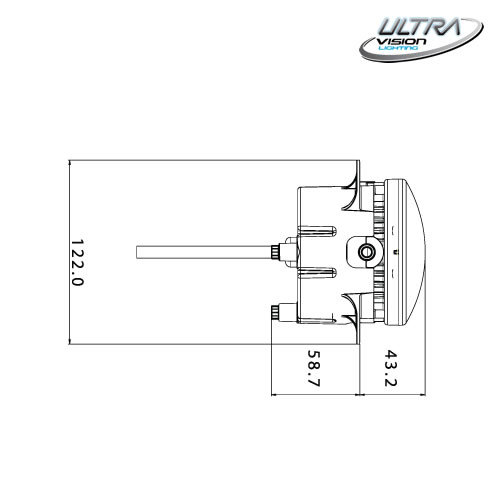

Diameter / Dimensions	100mm
Net Weight	800g
Mounting Suitable	4 Point
Warranty	5 Years

SKUs:

• Wiring harness and pair of lights: SB90/KIT
• Pair of lights only (no wiring harness): SB90/PR
• One light only: SB90
